China Factory Direct Sale 3.2m 1440dpi DX8 DX5 4720 Printheads Cotton Printer

  • >=1 Sets
    $16,800.00
Model Number:
FP-1260C
Gross Power:
7200W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets)
Color (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Certification:
CE Certificate.
Usage:
Paper Printer, Bill Printer, Cloths Printer, Vinyl Printer
Plate Type:
Roll to Roll Flag Printer
Type:
Inkjet Printer
Condition:
New
Warranty:
15 Months trouble-free warranty
Place of Origin:
China
Brand Name:
SinoColor Direct Flag Printer
Voltage:
110V or 220V according to your demand
Weight:
Gross Weight: 1350kg, Net weight: 1100kg
Automatic Grade:
Automatic
Dimensions(L*W*H):
L4610 xW1000 x H740 mm
Print Dimension:
maximum 3.2m width (126 inches).
Ink Type:
Textile Pigment Ink
Applicable Industries:
Garment Shops, Printing Shops, Advertising Company
Printing Size:
3.2m. And 1.6m/1.8m available
Ink Color:
CMYK or CMYK,LC,LM
Number of Printhead:
1
Printhead Model Number:
Dual DX8 Heads, And DX5 4720 is available
Resolution:
Max 1440dpi
Speed:
Draft printing speed 36 sqm/h
Application:
Flag, light box, banner,etc
Rip Software:
Maintop or Photoprint or Onyx
Operating System:
Windows 7/xp/10
Packing Information:
9.4CBM,1350KG
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Product Certification certification
CE Certified.
Valid from 2019-11-11 until 2024-11-10
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 set direct flag printer in 1 polywood box
Port
Shanghai (Other ports also OK)
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
China Factory Direct Sale 3.2m 1440dpi DX8 DX5 4720 Printheads Cotton Printer
The direct textile printer FP-740 / FP-1260 prints directly on textile fabric, mostly on polyester textile. Unlike the traditional
print and transfer process, the new direct textile printer saves a lot time and labor cost. Now in China, most of the textile
printing company are using direct textile printer, and FP-740 / FP-1260, is no doubt the leading one.
Model Number
SinoColor FP-1260C
Printhead
With DX8/DX5/3200 (4720 Printhead
Ink
Sublimation Ink
Size
Maximum 3.2m (126 inches) width
Media
polyester
Application
Flag, Light Box, Tent, Banner, etc
Delivery Lead Time
7 working days
Warranty
15 months trouble-free warranty
Application
Products Description
Model No.
FP-740P
FP-740C
FP-1260P
FP-1260C

Printhead
Type
Dual Epson 4720 (DX5 available)
Dual Epson DX8
Dual Epson 4720 (DX5 available)
Dual Epson DX8
Height
2-8mm Above Media Adjustable
Resolution(dpi)
1400 dpi max


Media
Width
1.8 meter (74 inches)

3.2 meter (126 inches)
Type
Polyester, Chemical Fiber, Urethane Elastic Fibre, 35% Cotton, Heat Transfer Paper, etc


Ink
Color
C M Y K
C M Y K / C M Y K Lc Lm
C M Y K
C M Y K / C M Y K Lc Lm
Type
Sublimation Ink
Droplet
1.5 – 21pl variable



Speed
Draft
39 sqm/h
32 sqm/h
44 sqm/h
36 sqm/h
Standard
29 sqm/h
24 sqm/h
32 sqm/h
26 sqm/h
Quality
21 sqm/h
18 sqm/h
23 sqm/h
20 sqm/h
Cleaning System
Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up
Automatic Media Feeding (Standard) & Take Up System (Optional)
Environment
Temperature: 20-28°C, Humidity: 40-60%
Rip Software
Maintop (Standard)/ PhotoPrint (Optional)/ Onyx (Optional)/ Wasatch (Optional)
Interface
USB2.0
Power
Machine 50/60Hz, 110/220V, 1200W
Size & Weight
Machine
L3100 W780 H1500 (mm) / 600 KG
Packing
Total 2 Packages Package 1 321*100*74cm Package 2 338*77*130cm, 800KG
Features





Integrated Temperature Control
Why it matters : Control the front, middle and rear heater in one place. Integrated heater controller have less fault than
separate ones.






Advanced Media Handling
New feed adjuster system for even tensioning to prevent skewing

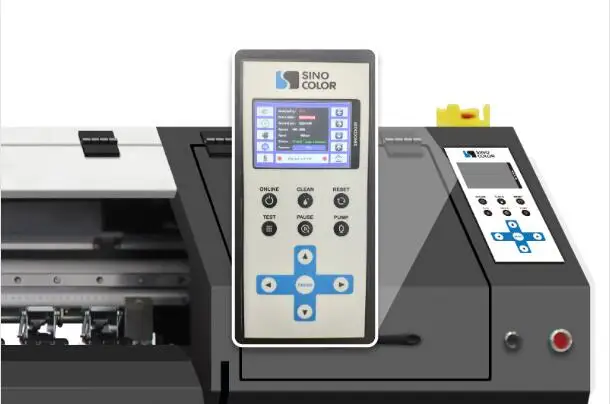

Big Functional Control Panel
Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.




Integrated Aluminous Carriage Girder
Why it matters : It’s the girder on which placed the guide rail. It’s made of aluminum to ensure very high accuracy for the guide
rail and carriage.

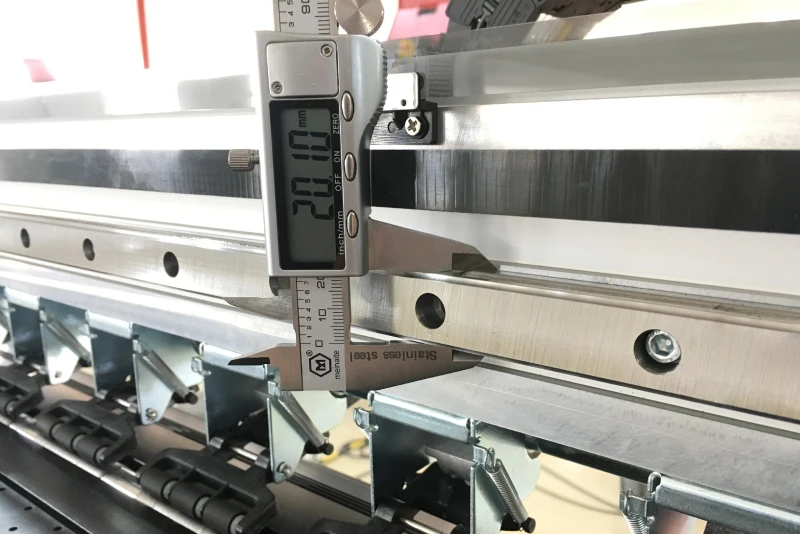

Guide Rail with a Increased Width of 20mm
Why it matters : Only high quality wide guide rail supports carriage move back and forth for million times without any issue. And
it’s the key part that ensures the accuracy of the carriage movement.





Steel Main Girder
Increase the strength. Protect the printing platform from being bended during long distance transportation





Aluminum Moulding Frame
Increase machine accuracy and extend machine durability





Italian Megadyne Belt

High quality. Durable



Wide Pinch Roller
Why it matters : Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step
while not make any footprint of the pinch roller.





IGUS Drag Chain from Germany
Why it matters : IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

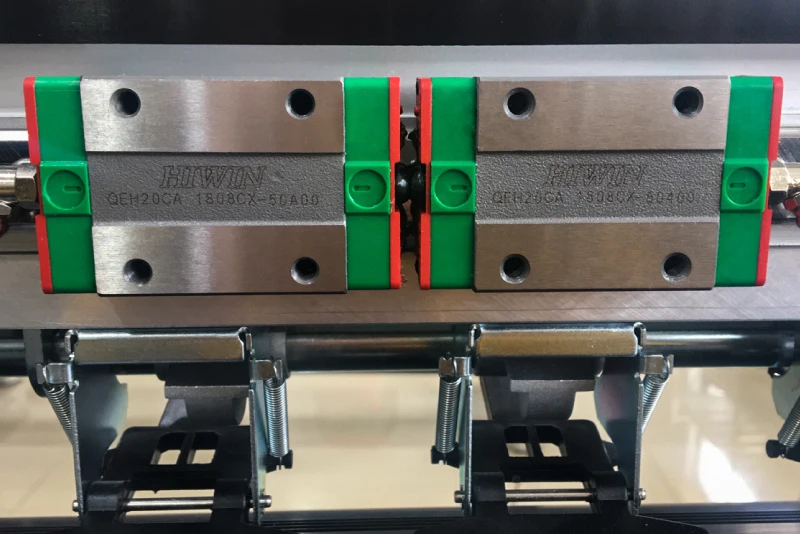

Double Slider
Why it matters : Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the
carriage.





LED Lamp
with the LED lamp strip, uses could check out the print result more easily

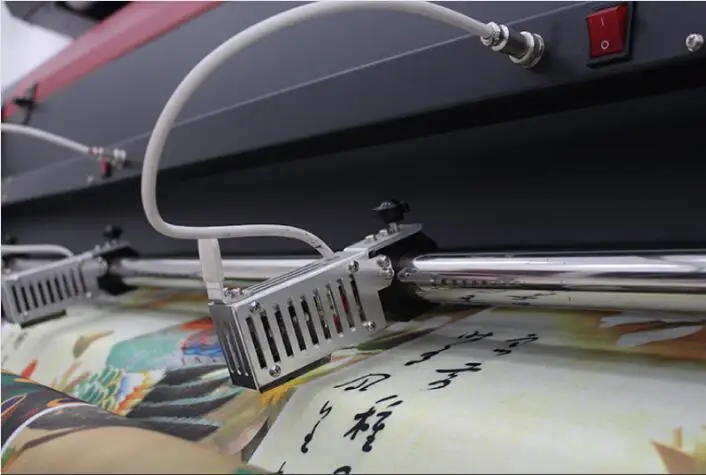

Heating Cutter (Optional)
unique small device that saves time for finishing process





Variable Dot Print Technology
Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes
Packing&Shipping
Total 2 Packages Package 1: 461*100*74cm Package 2: 445*120*119cm
9.8CBM Gross Weight: 1350KG Delivery lead time: 7 working days
After Sales Service
Lifetime Online Support, Onsite Support Available
1. 15 months trouble-free warranty

2. From Monday to Sunday, 9am to 9pm. Experienced technician to gurantee lifetime online support (By Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer). So no need to worry about the technical support due to time difference. 3. Onsite support also available. We had been in this industry for more than 10 years. And know clearly how to support the oversea clients. So you can rest assured not only before-sale, but also after-sale.
Company Introduction
SinoColor Co., Ltd. is a high-tech enterprise specialized in developing and manufacturing industrial printing equipment.
The company’s product including UV printer, Textile printer,Flatbed printer, Eco solvent printer, Solvent printer etc. We are
offering OEM and ODM service.

Company is comprised by SinoColor Printing Equipment(Shanghai) Co., Ltd and SinoColor (HK) Co.,Ltd., headquartered in Shanghai,China. Top 20 exporter of China Sign Association (CSA). Through years of development and efforts, SinoColor has established a great brand image among customers and cooperated with a number of national and area agents around the world to guarantee equipment’s after-sales service. The company’s products have been exported to more than 100 countries including the United States, Britain, Portugal, Spain, Italy, Mexico, Sri Lanka,Poland, Russia, Jordan, UAE, Saudi Arabia, Brazil, Chile, India etc. We are dedicating to offer better product and better service for our customer, welcome you to contact and cooperate with us.
Exhibition Show
Customer Visiting
FAQ
Q1: What material I can print with this printer?
A: For this printer, can work with sublimation ink and textile pigment ink.
If use sublimation ink, good for printing directly on polyester, which mostly used for flag, light box, banner,etc.

If use textile pigment ink, good for printing directly on cotton.

If necessary, you can choose to install 2 types ink on the printer. Then print different types of fabric freely.

Q2: How to install the printer?
A:
We have detail manual and clear working video. Will send together with printer to guide you install, operate and maintain the machine easily. And for some area we also have local technician to give onsite support.

If you need technician visiting from China, we can also arrange.

Q3: How to maintain the printer?
A:
If no printing for 1 week, just make sure the capping unit closed the printhead properly. If more than 1 week, need to fill in some cleaning liquid into capping unit, then close the printhead. If more than1 month, suggest to take off printhead, clean it. And pack it safe.

Q4: Are you manufacturer?
A:
Yes. We have more than 10 years of manufacturing and exporting experience. We are proud to be the first batch of Chinese manufacturers devoted in large format printers.

Q5: How to buy?
A:
Simply contact our sales expert and inform your demands, request for a Proforma Invoice. The order will be shipped after the invoice get paid.

Q6: How can I trust you?
A:
Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check your goods. Or place order through Alibaba Trade Assurance Order. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for long time. You can always rely on us.

Q7: How to send goods to my place?
A:
We have regular reliable forwarder agent, can send goods to you by sea, by air, by DHL Express, or if you have agent, we can send to their warehouse in China.
And if you want to combine our products with other items you bought from other supplier, we would also be happy to help.

If you are new for importing, feel free to contact us. We will help check the most suitable transportation method for you.

Q8: How to pay?
A:
Recommended payment method is bank transfer which usually has not much limitation in most countries. For small amount, there are some other options : Western Union, Money Gram and Paypal. And you can also pay through Alibaba Trade Assurance Order (There you can use Credit card also)

Q9: How is your warranty?
A:
15 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan. For more information, please feel free to contact our sales people.

Q10: How is your technical support?
A:
We provide 15 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer.
From Monday to Sunday, 9am to 9pm. No need to worry about the technical support due to time difference.

Onsite support also available.

Q11: How to contact you?
A: Feel free to send us message on Whatsapp/Wechat/Skype :  +86-18916825901 Or leave message on Alibaba. We will reply as fast as we can
