A1 Size 9060 DX5 DX8 L1440 Printheads White Varnish Photo Quality LED UV Bottle Printing Machine With Built-in Rotary Device

  • >=1 Sets
    $7,500.00
Model Number:
FB-0906
Gross Power:
1800W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets)
Color (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Certification:
CE Certificate.
Usage:
Paper Printer, Card Printer, Bill Printer
Plate Type:
Flatbed Printer
Type:
Inkjet Printer
Condition:
New
Warranty:
15 Months trouble-free warranty
Place of Origin:
China
Brand Name:
SinoColor UV Printing Machine
Voltage:
110V or 220V according to your demand
Weight:
Gross Weight: 400kg, Net weight: 280kg
Automatic Grade:
Automatic
Dimensions(L*W*H):
L2200 x W1250 x H1400 mm
Print Dimension:
90*60cm
Ink Type:
UV Curable Ink
Applicable Industries:
Printing Shops, Advertising Company
Ink Color:
Color + White+Varnish
Printhead Model Number:
DX8 , DX5, L1440 available
Number of Printhead:
2 or 3 printheads
Resolution:
Max 1440dpi
Speed:
4 Pass: 12 sqm/h (Color+White)
Auto Media Height Detecting:
Equipped
Application:
Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC etc
Rip Software:
Maintop or Photoprint or Onyx
Operating System:
Windows 7/xp/10
Packing Information:
2.87CBM,400KG
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Product Certification certification
CE Certified.
Valid from 2019-11-11 until 2024-11-10
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 set flatbed uv printer in 1 polywood box
Port
Shanghai (Other ports also OK)
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
A1 Size 9060 DX5 DX8 L1440 Printheads White Varnish Photo Quality LED UV Bottle Printing Machine With Built-in Rotary Device
With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 & FB-1313 & FB-2513 UV flatbed printers are ideal for  applications such as backlit displays and signage,signs and posters, interior décor, glass and metal decorative panels and more.
Model Number

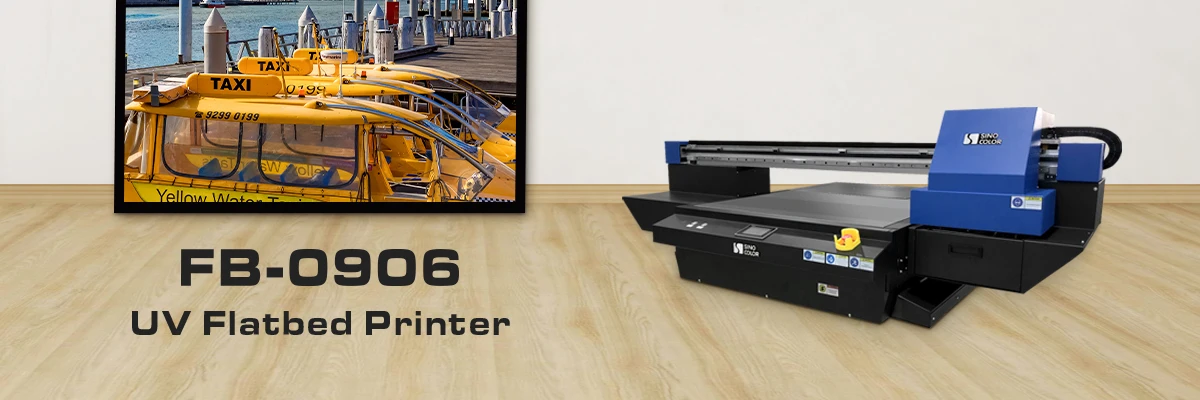

SinoColor FB-0906 Flatbed UV Printer
Printhead
With DX8/DX5 /L1440 Printheads
Ink
UV Ink (Color/Color+White/ Color+White+Varnish)
Size
90*60cm
Media
Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE…
Application
Promotions, Gifts, DIY Printing, Decoration,etc
Delivery Lead Time
7 working days
Warranty
15 months trouble-free warranty
Application
Products Description
Model No.
FB-0906
FB-2513
Printhead
With 2/3 Epson DX5/ DX8/L1440 Printheads
Resolution(dpi)
1400 dpi max


Media
Thickness
12cm Max

Size
900*600 mm
2500*1300mm
Types
Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTEE,Etc.


Ink
Color
C M Y K / C M Y K Lc Lm+White or Varnish
Type
UV Ink
Dry System
UV-LED Light System
Capacity
500ml



Speed
4 Pass
12 sqm/h (Color+White)
63 sqm/h (Color Only, 3*L1440 )
6 Pass
8 sqm/h (Color+White)
32 sqm/h (Color Only, 3*L1440 )
8 Pass
6 sqm/h  (Color+White)
21 sqm/h (Color Only, 3*L1440 )
PC Operation System
Windows 7, Windows XP, Windows 10
Environment
Temperature: 20-28°C, Humidity: 40-60%
Rip Software
Maintop (Standard)/ PhotoPrint (Optional)/ Onyx (Optional)
Image Format
TIFF,JPEG, EPS, PDF
Interface
USB3.0
Power
Machine 50/60Hz, 110/220V, 1800W
Machine 50/60Hz, 110/220V, 3500W

Size & Weight
Machine
L2200 W1780 H1500 / 280 KG
L3700 W2300 H1550 / 900 KG
Packing
L2250 W1450 H880 (mm) / 400 KG
L3700 W2300 H1500 (mm) / 1000 KG
Features

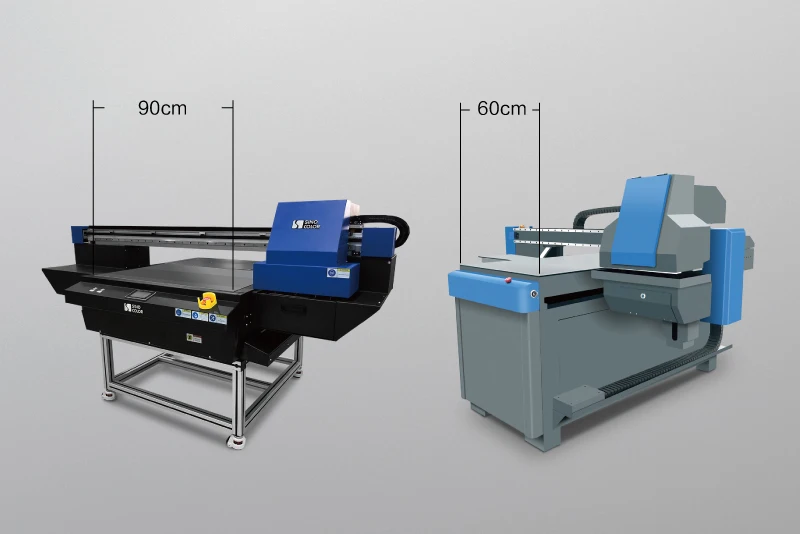

Set X Direction Width to Be 90cm
Designed X direction width set at 90cm instead of 60cm, greatly reduce the pass number of each print work which will effectively
increase the printing speed of same resolution.

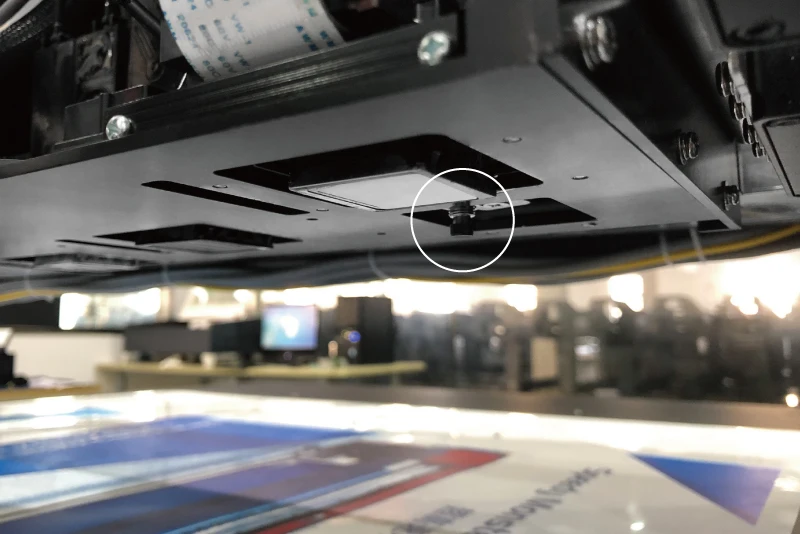

Auto Media Height Detecting
Automatic media height detecting system is equipped, provide great help for setting the proper print height.

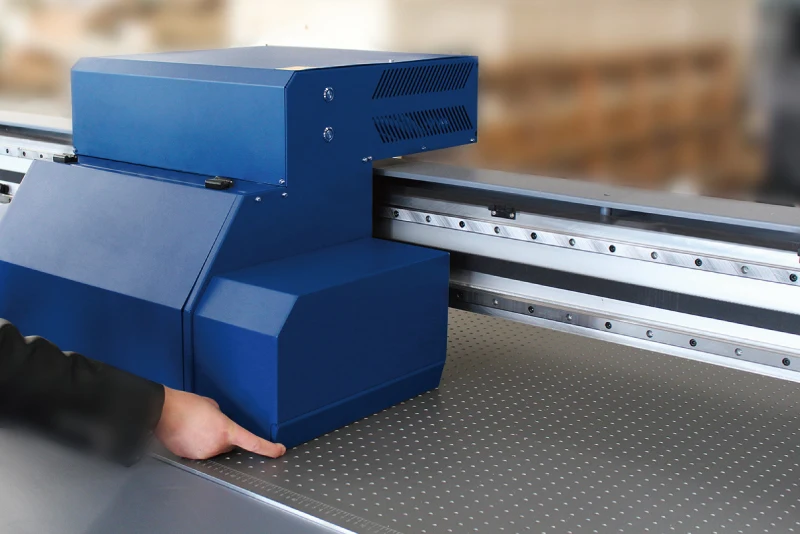

Anti-Collision System
Anti-collision system is equipped to protect the printhead and carriage all the time.





Lack Ink Alarm
Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job
any more.

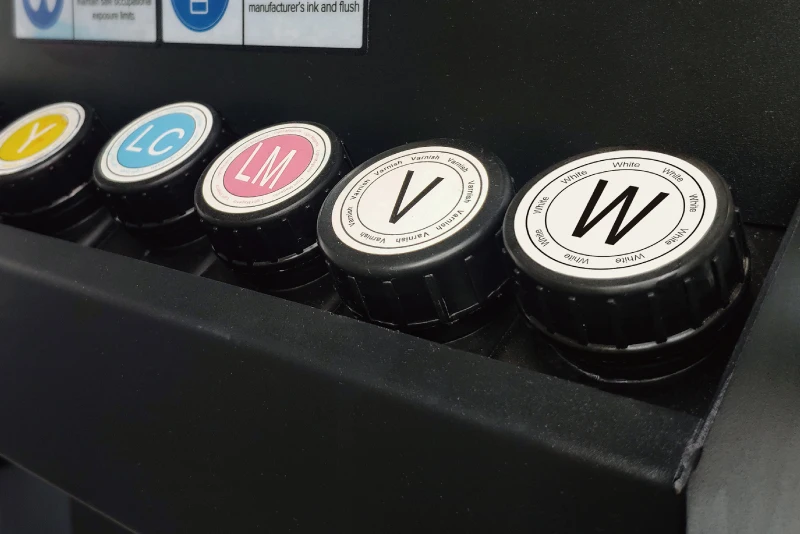

White Ink Stir System
White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

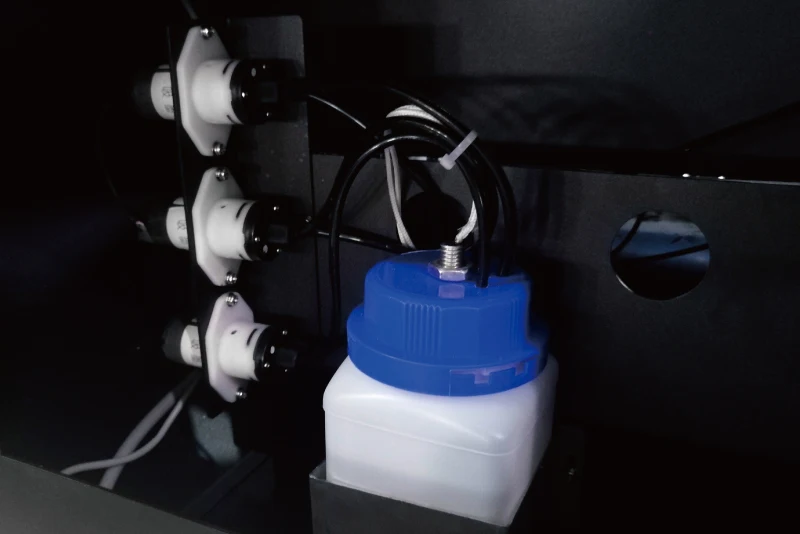

Waste Ink Collecting System
Newly designed waste ink collecting system, more functional, clean and tidy.





Built-in Rotary Device

Well-designed built-in rotary device is optional. Fit for different type of cylinder shape subject. More stable and functional than external device and save space.

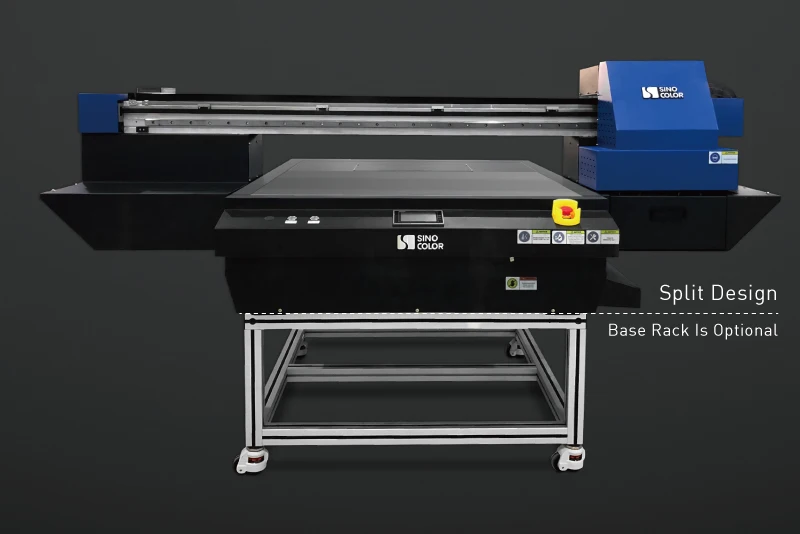

Split Design
Printer and base rack using split design (base rack is optional), compact and easy to place, greatly reduce the package size, save the transportation fee.

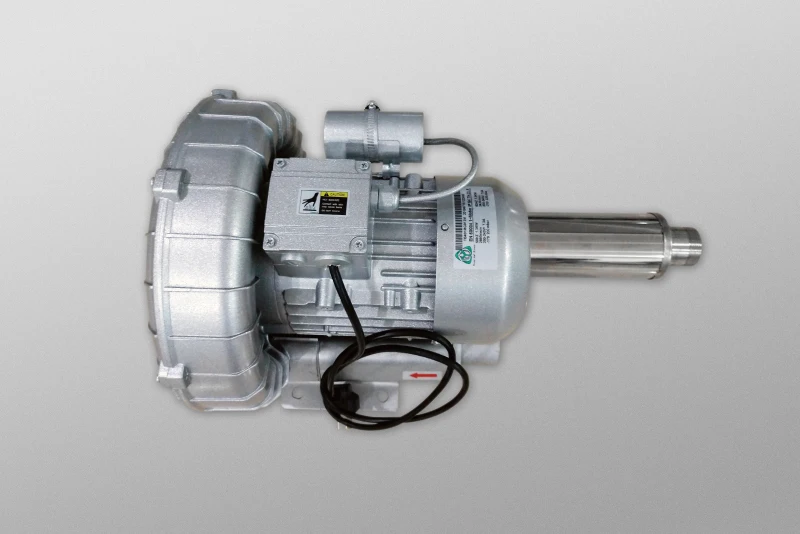

High-power Independent Vacuum System
High-power independent vacuum system. Much more practical and functional than the vacuum system with small-power internal vacuum
fans.

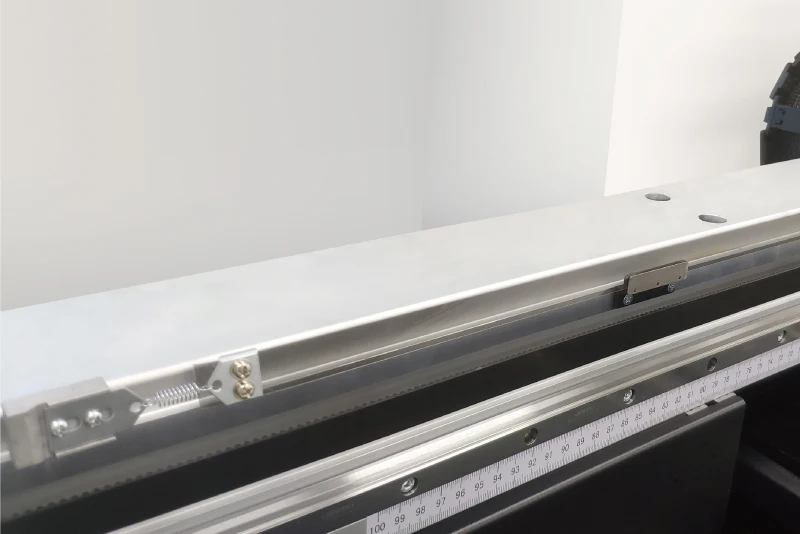

One-time Molding Aluminum beam
One-time molding aluminum beam that ensure the high accuracy of each carriage movement.




Screw Rob Type Transmission
Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

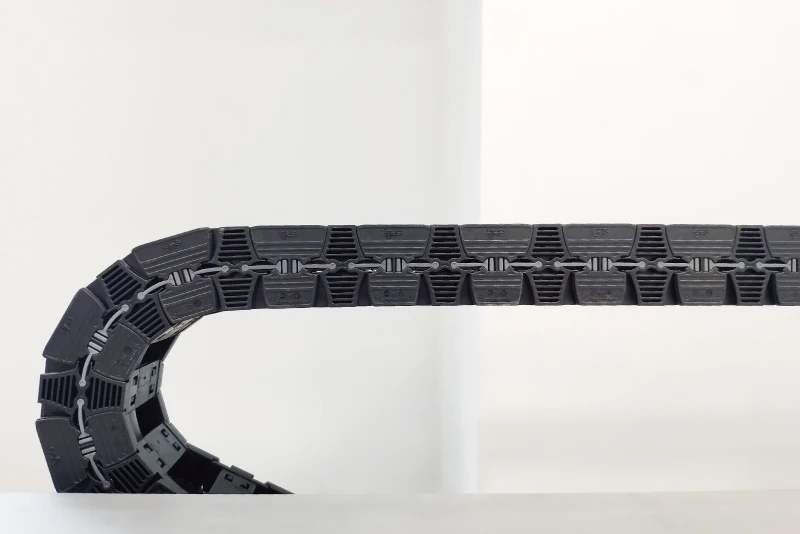

German Igus Drag Chain
High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

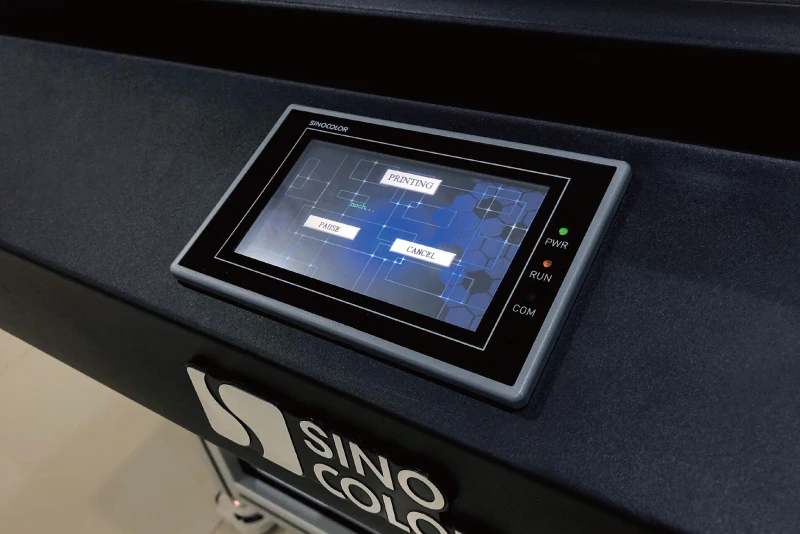

Well-designed Touch Screen
Well-designed touch screen. Easily adjust platform position and do the basic setting.

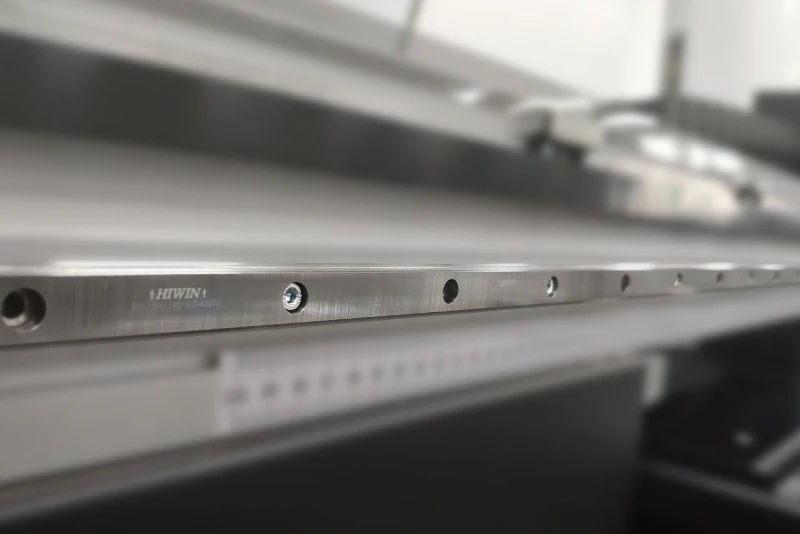

Taiwan Hi-win Guide Rail
High quality branded guide rail, build for long life use.






Branded Circuit Breaker
Branded circuit breaker to protect the safety of the whole electronic system.
Packing&Shipping
1 set uv flatbed printer in 1 polywood box Packing size: L2250 W1450 H880 (mm) , 2.88CBM Gross Weight: 400KG Delivery lead time: 7 working days
After Sales Service
Lifetime Online Support, Onsite Support Available
1. 15 months trouble-free warranty

2. From Monday to Sunday, 9am to 9pm. Experienced technician to gurantee lifetime online support (By Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer). So no need to worry about the technical support due to time difference. 3. Onsite support also available. We had been in this industry for more than 10 years. And know clearly how to support the oversea clients. So you can rest assured not only before-sale, but also after-sale.
Company Introduction
SinoColor Co., Ltd. is a high-tech enterprise specialized in developing and manufacturing industrial printing equipment.
The company’s product including UV printer, Textile printer,Flatbed printer, Eco solvent printer, Solvent printer etc. We are
offering OEM and ODM service.

Company is comprised by SinoColor Printing Equipment(Shanghai) Co., Ltd and SinoColor (HK) Co.,Ltd., headquartered in Shanghai,China. Top 20 exporter of China Sign Association (CSA). Through years of development and efforts, SinoColor has established a great brand image among customers and cooperated with a number of national and area agents around the world to guarantee equipment’s after-sales service. The company’s products have been exported to more than 100 countries including the United States, Britain, Portugal, Spain, Italy, Mexico, Sri Lanka,Poland, Russia, Jordan, UAE, Saudi Arabia, Brazil, Chile, India etc. We are dedicating to offer better product and better service for our customer, welcome you to contact and cooperate with us.
Exhibition Show
Customer Visiting
FAQ
Q: How to install the printer?
A:
We have detail manual and clear working video. Will send together with printer to guide you install, operate and maintain the machine easily. And for some area we also have local technician to give onsite support.

If you need technician visiting from China, we can also arrange.

Q: Does the printer print texture effect?
A: Yes. Can print max about 2mm thick

Q: Can it print cup with handle?
A: Yes. Just add the rotary device. And our rotary device fit for bottle with handle, and the bottle that has different upper and below diameter。

Q: How to maintain the printer?
A:
If no printing for 1 week, just make sure the capping unit closed the printhead properly. If more than 1 week, need to fill in some cleaning liquid into capping unit, then close the printhead. If more than1 month, suggest to take off printhead, clean it. And pack it safe.

Q: Do you supply printer with the XP600 Printhead?
A:
Our printer can be equipped with DX8, or DX5 or XP600 Printhead. But we don’t recommend.
Because according to our testing the XP600 fit for only waterbased ink. As its inner structure is not corrosion-resistant. When work with Eco Solvent Ink/UV Ink, will clog easily. And lifetime short.

Q: Are you manufacturer?
A:
Yes. We have more than 10 years of manufacturing and exporting experience. We are proud to be the first batch of Chinese manufacturers devoted in large format printers.

Q: How to buy?
A:
Simply contact our sales expert and inform your demands, request for a Proforma Invoice. The order will be shipped after the invoice get paid.

Q: How can I trust you?
A:
Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check your goods. Or place order through Alibaba Trade Assurance Order. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for long time. You can always rely on us.

Q: How to send goods to my place?
A:
We have regular reliable forwarder agent, can send goods to you by sea, by air, by DHL Express, or if you have agent, we can send to their warehouse in China.
And if you want to combine our products with other items you bought from other supplier, we would also be happy to help.

If you are new for importing, feel free to contact us. We will help check the most suitable transportation method for you.

Q: How to pay?
A:
Recommended payment method is bank transfer which usually has not much limitation in most countries. For small amount, there are some other options : Western Union, Money Gram and Paypal. And you can also pay through Alibaba Trade Assurance Order (There you can use Credit card also)

Q: How is your warranty?
A:
15 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan. For more information, please feel free to contact our sales people.

Q: How is your technical support?
A:
We provide 15 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer.
From Monday to Sunday, 9am to 9pm. No need to worry about the technical support due to time difference.

Onsite support also available.

How to contact you?
A: Feel free to send us message on Whatsapp/Wechat/Skype :  +86-18916825901 Or leave message on Alibaba. We will reply as fast as we can
